Monday, October 18, 2021

Static grass applicator extension

Awhile back when I was contemplating buying or building a static flock box, I contacted a friend of mine: Michael W.  I told him how I had seen videos of modelers who built their own in order to facilitate making their own grass tufts.

He told me instead of buying or building one, that in fact I already had one.  He explained that my Woodland Scenics static grass applicator should work just fine with some minor modifications.  Basically I just needed needed add some wire extensions to the unit and I would be golden.  He was right.

However after trying it out, I was just not satisfied with the results, not because of the modifications I made, but because I had troubles getting the tufts to release from the wax paper or any other type of paper I tried, so I put things on the back burner.  Then after doing a little more research via YouTube, I ran across a guy who made his tufts by applying the glue dots directly to a non-stick cookie tray, which I posted about and this worked so much better.

http- Static grass tufts and weedy tracks

Now I was ready to start getting some grass and weeds applied to the yard and between the rails and ties.  I loaded up the WS Static King and got after it.  The first thing i realized is the WS hopper is quite large and wanted a little more control of the grass as it comes out of the 2"+ diameter hopper.

My first try was to make a paper disc insert and slice off one edge or cut a smaller diameter hole out of the center of the paper disc.  This worked, but not as well as I would've liked it to.  So I sat down at the computer and started surfing with Google to take another look at the PECO or WWS Micro grass applicator again.

The hopper and handle is only about an 1" diameter and I felt that this smaller diameter would give me better control of the grass coming from the hopper.  The problem was with the WS unit being 2"+ in diameter, I wound up covering an area several tracks wide.  Then I'd come back with a vacuum and suck it all up from all those tracks, not to mention it laid the grass on thicker and heavier than I wanted and wound up pusing more grass than I needed.

But there were two issues I had with the micro applicator 1) The price of the unit and 2) It was powered with a 9v batteries and I loath batteries as they are usually dead when you need them.  So I figured that I could find a 9vdc, 1-3amp wall wart that I could connect to the unit so it was AC powered and I wouldn't have to rely on the batteries.

Another call was placed to Michael to confirm my idea and he told me NOT to buy anything!  Again he said I had everything I needed except a few small parts.  What he told me to do was to make my own Micro applicator by using my WS Static King for the power supply.  I needed to find a suitable tube and some screen and a couple of longer wires and make it out of.

After brainstorming with Michael on the phone, I bounced it around in my head overnight, this is what I came up with.

The applicator is made from a 7"- 8" length of 1"ID PVC tube.  A threaded adaptor.  A small circle of screen from an old kitchen sieve.  Two sections of 18ga wire and three alligator clips.

The screen was cut to the inside diameter of the threaded adaptor.  I drilled a hole in the side of the adaptor to insert the wire.  Since the screen was aluminum or stainless steel I couldn't solder it to the wire.  So I tinned the tip of the red wire to thicken it a bit, stuck it through the hole, slid the screen down into the adaptor so that it laid over the tip of the wire.  Once I had it set in place, I inserted the PVC tube into the adaptor and tapped it snuggly down onto the screen so it made good contact with the wire.  I tapped it with a hammer to set it, but did not glue it so I could make changed if needed.  Then i cut off most of the threading.  I added one red alligator clip to the screen wire and made a black wire extension as well.

I still need to make some minor adjustments to the unit but overall it works quite well.  It has more than enough juice to work properly, It's small enough that I have more control of the grass so it doesn't several at once, and it's easy to load the hopper.  Once thing to mention about the PECO/WWS version, the hoope is a very small cap and can only hold about a cubic inch of material at one time, so you wind up adding more quite often if you have a lot to cover.

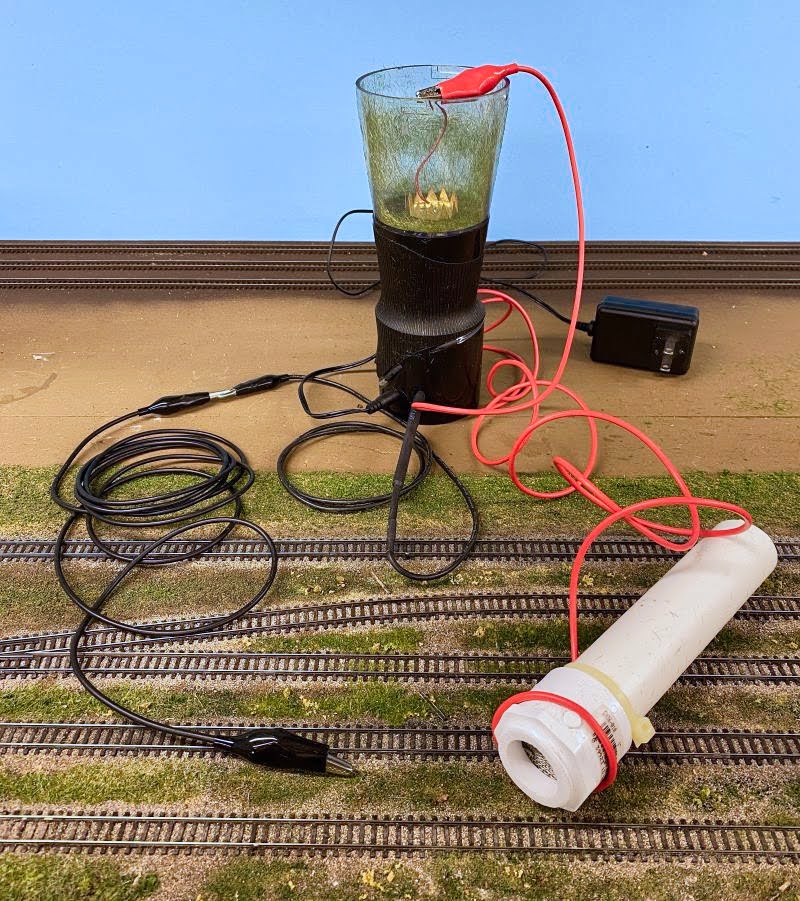

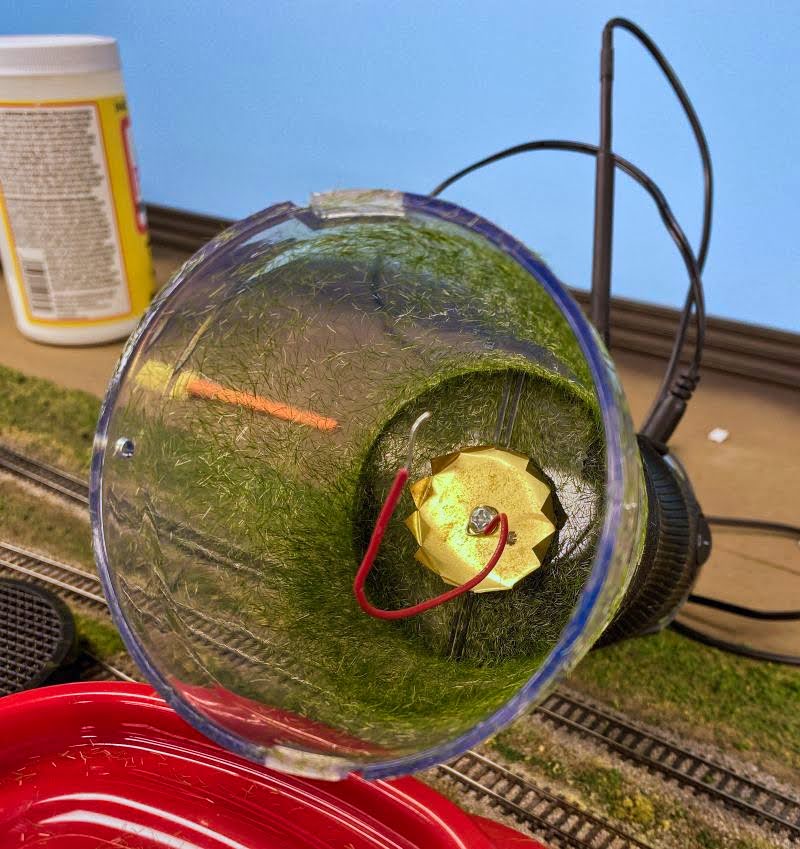

Here's how it connects to the WS Static King.  Michael told me to attach a small wire to the little screw that holds the brass crown in the hopper back when he told me how to make the flock box.

The red wire of the PVC tube attaches to the small wire in the hopper and the black extension wire clips to the black lead coming from the WS Static King.

I still need to make some adjustment to the tube, mainly something to hold the wire in place.  I have also got a couple of zaps from it as well, which I think it came from where the red wire enters the tube and was jumping back to me?  Maybe need to wrap some tape around the unit to help insulate me?  It would be nice to find some large diameter heat shrink tubing.

Overall I think this is a winner and want to thank Michael for his insight and help.

I have played with it a bit and will be posting some pictures of the results when I next get a chance.

Tuesday, October 5, 2021

Static weeds

I played around with the weeds in the yard tonight in a small patch to see what I could do.  I got some mixed results.

I started out between the tracks first and added a mix of 2mm & 4mm.  I cut out a small disc of paper and sliced off one edge of the disc, and placed it in the hopper screen to act as aperture to help regulate the amount of grass so it didn't all fall out right away.  I got this idea after thinking about buying one of the PECO Micro applicators.  The WS Static King has a screen about 2" in diameter.  It worked,  but I may need to make the aperture a little larger?

Before applying the glue and grass I covered the tracks with strips of 3/4" masking tape to protect the tracks from any dribbles of glue.  This was more cautionary than needed I think?  Next I grabbed the 1" foam brush and dipped it in the glue mix that I used for the ground foam.  Once I had a good coat of glue I started to apply the static grass.

Well the paper aperture worked, but like I said it may need to be a bit larger?  I also think I'll need to use thicker glue. When the grass hit the glue a lot of it seemed to lay over. I think this was because the glue mix, being too thin had a capillary effect and pulled the grass down into the ground foam.

I did hit the area again a bit later and it seemed to stand up better, I also used a small vacuum to suck up the excess, which also helped a bit to pull the grass up.  This is why you do a little at a time to test things out, right?

The tape worked good to keep the tracks clear of weeds, but since I wanted weeds between the rails, the tape may be an waste of time?

I made a bunch of tufts and strips in the last post with the thought of cutting them to length and gluing them between the rails, but before going down tonight, I seen a guy using a small paintbrush and apply glue between the ties!  Although he was doing it with HO I figured I could give it a whirl on N scale.

I poured about half a teaspoon of full strength Modge Podge and added a couple drops of water with the hopes that it would flow a bit better but not suck up the grass?  (I may try full strength next time?)  Anyway after dabbing the glue between the ties in a couple areas I then applied one area with 2mm and the other area with a mix of 2mm & 4mm.  Then I ran the vacuum over the area.  The thicker glue seemed to help a bit.  In the images below you can see the results.

2mm between the ties:

2mm & 4mm between the ties:

Overall area:

While the 4mm looks better to me, I'm afraid the 4mm may wreak havoc if the gears in the loco trucks pick it up?  The 2mm looks too short, but at least you'll will see weeds between the rails, so it might just have to be a trade off.  As far as between the tracks, I'll use a mix of 2mm & 4mm.

I'm still planning to cut and glue the weed strips into place to see which I like better.


Sunday, October 3, 2021

Weed base

After getting a good handle on how to make the static grass tufts in the last post, I continued adding a weed base to the yard between the tracks.

I simply used a 1" foam brush dipped in thinned Modge podge and dabbed it on the areas between the tracks where there was more dirt than ballast and lightly sprinkled random colors of Woodland Scenic fine ground foam.  This was followed by adding just a pinch of  the coarser ground foam to add a bit of 3D and padded it into the rest of the foam.

I followed this up using a eyedropper with the same glue to make sure everything got glued in place.

While this doesn't look bad as is, I think when I add the static grass over this base, it should add some depth to the grass and weeds without making it look like solid field of weeds.

My thoughts in doing this is to keep from having to use a lot of static grass to cover the earth (brown paint) as well as to add variation to the weeds.

Once I get the courage up to apply the static grass between the tracks, I'll start adding the tufts between the rails and ties as well as elsewhere throughout the yard.

I tried getting some better shots but realized I need to invest into some better lighting and some accessories for the tripod so I can reach over the layout.
